Air Curtains
Fan-powered devices mounted above or alongside a doorway that create a continuous, invisible stream of air.
An air curtain is a fan-powered device that creates an invisible air barrier over the doorway to separate efficiently two different environments, without limiting the access of the people or vehicles. The energy-saving air screen reduces heating and cooling costs by up to 80% while protecting the internal climate and increasing people’s comfort.
There are 6 main product categories, and all types can be with or without electric heater:
- General type
2. Built-in type
3. Commercial type
4. Water Coiled type
5. Industrial type
6. Vertical type
It keeps the atmosphere clean from pest and insects, dust, airborne, pollution, smells, odours and stops draughts and cold or hot air entrance. The functioning of an air curtain is based on a high velocity jet of air that covers all openings. Heated air curtains creates comfort by the jet of air on people as they cross the air screen and helps to maintain the temperature on the
entrance.
Description
It can be used for supermarket, storage area, airport, terminal, and factory doors exceeding 4 meters.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It has a cross-inspired aluminium fan impeller.
- Tube resistances are located in the air suction duct.
- It works either with ambient air only (without heater) or with heater in the device.
- It can be controlled by wired controller or remote controller.
- If requested, switch apparatus
compatible with automatic doors can be supplied. - It can be mounted either to the wall or the ceiling.
Technical Details

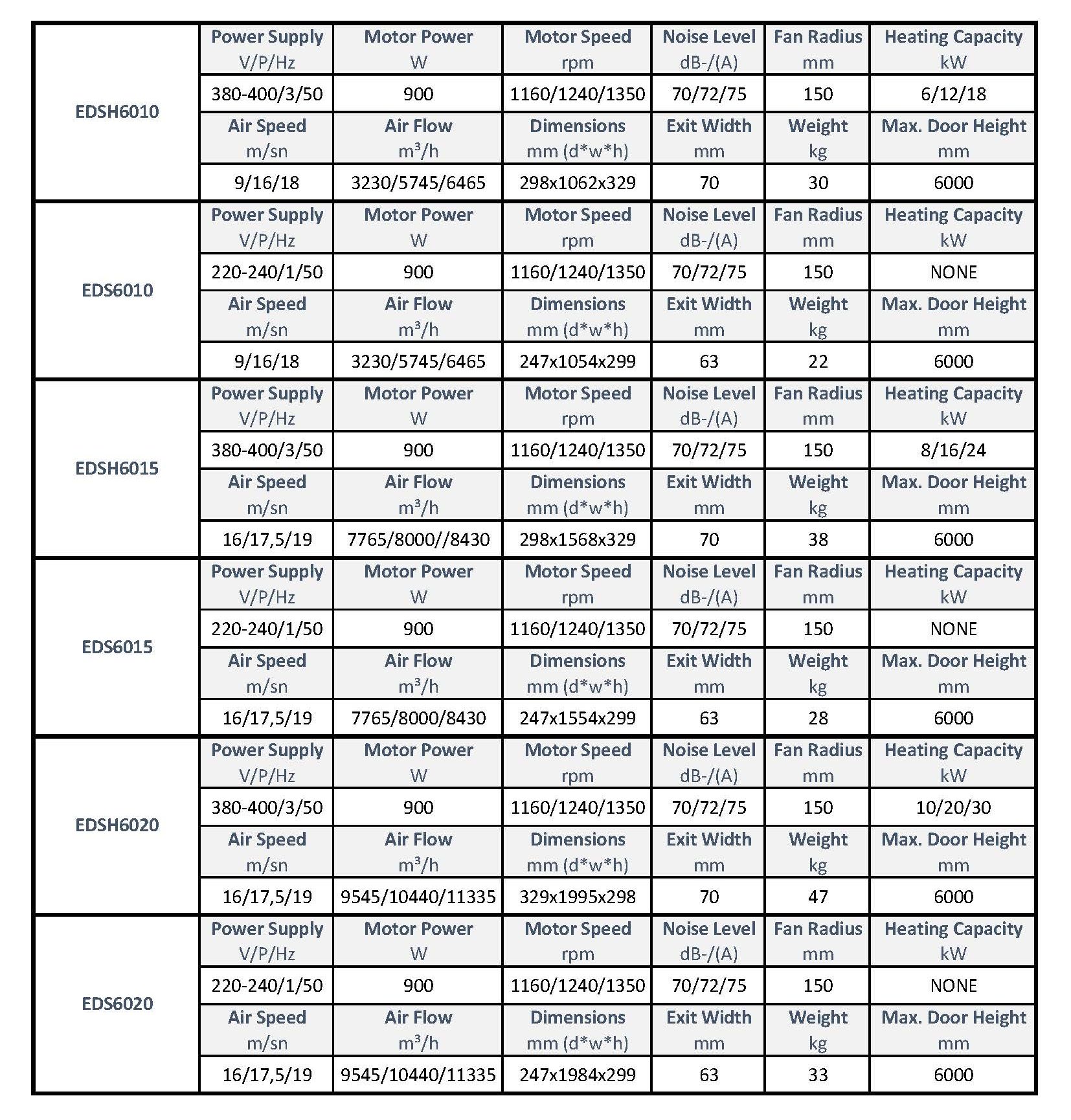

The technical details are summoned in the table below for various industrial air curtains. For the air curtains without a heater, heating capacity stated as NONE.
Description
It can be used for supermarket, storage area, airport, terminal, and factory doors exceeding 4 meters.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It has a cross-blown aluminium fan impeller.
- Tube resistances are located in the air suction duct.
- It works either with ambient air only (without heater) or with water coils.
- It can be controlled by wired controller or remote controller.
- It can be mounted either to the wall or the ceiling.
Technical Details
The technical details are summoned in the table below for various industrial air curtains with water coils.
Description
It can be used for plazas, shopping centers, restaurants and cafes, hotels, hospitals, pharmacies, schools, airports, terminals, and cold storages.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It has a cross-inspired plastic fan impeller.
- Tube resistances are located in the air suction duct.
- It works either with ambient air only (without heater) or with heater in the device.
- It can be controlled by wired controller or remote controller.
- It can be mounted either to the wall or the ceiling.
Technical Details
The technical details are summoned in the table below for various commercial air curtains. For the air curtains without a heater, heating capacity stated as NONE.
Description
It can be used for the doors of banks, shops, schools, Exchange Bureaus, jewellers, beauty saloons, hairdressers, small hotels, cafés and restaurants.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It has a cross-inspired plastic fan impeller.
- Tube resistances are located in the air outlet duct.
- It works either with ambient air only (without heater) or with heater in the device.
- It can be controlled by remote controller.
Technical Details
The technical details are summoned in the table below for various general type air curtains. For the air curtains without a heater, heating capacity stated as NONE.
Description
Built-in type air curtains are produced for decorative purposes to be mounted on suspended ceiling. It can be used in business and shopping centers, restaurants and cafes, hotels, hospitals, pharmacies, schools, airports, terminals.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It is integrated into the ceiling and has a decorative appearance.
- It has a cross-inspired plastic fan impeller.
- Tube resistances are located in the air suction duct.
- It works either with ambient air only (without heater) or with heater in the device.
- It can be controlled by wired controller or remote controller.
- If requested, switch apparatus compatible with automatic doors can
be supplied. - It can be mounted on the suspended ceiling.
Technical Details
The technical details are summoned in the table below for various smart built-in air curtains. For the air curtains without a heater, heating capacity stated as NONE.
Description
It can be used in all business areas such as, shops, grocery stores, supermarkets, cafes and restaurants, hotels, sports centers, business and shopping centers, banks, exchange offices, classrooms and many others.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- External Coating Options: 304 quality matte stainless steel coating, natural matte anodized coating, powder paint coating, Ral dyed DKP sheet coating are available upon request.
- It has a cross-breezy plastic fan impeller.
- Tube resistances are located in the air suction duct.
- It works either with ambient air only (without heater) or with heater in the device.
- It can be controlled by wired controller or remote controller.
- If requested, switch apparatus compatible with automatic doors can be supplied.
Technical Details
The technical details are summoned in the table below for various vertical air curtains. For the air curtains without a heater, heating capacity stated as NONE.
Description
Water coils produced for spaces with hot water infrastructure to save energy by reducing electricity usage. It can be used in pools, gyms, hotels, beauty saloons, hairdressers, cafes and restaurants.
Properties
- Self perforated galvanized steel front plate is coated with electrostatic powder paint and the standard color is RAL9016.
- Stainless steel and other color options are available upon request.
- It has a cross-blown aluminum fan impeller.
- It works either with ambient air only (without heater) or with water coils.
- It can be controlled by wired controller or remote controller.
Hot and Cold Water Pipes
Technical Details

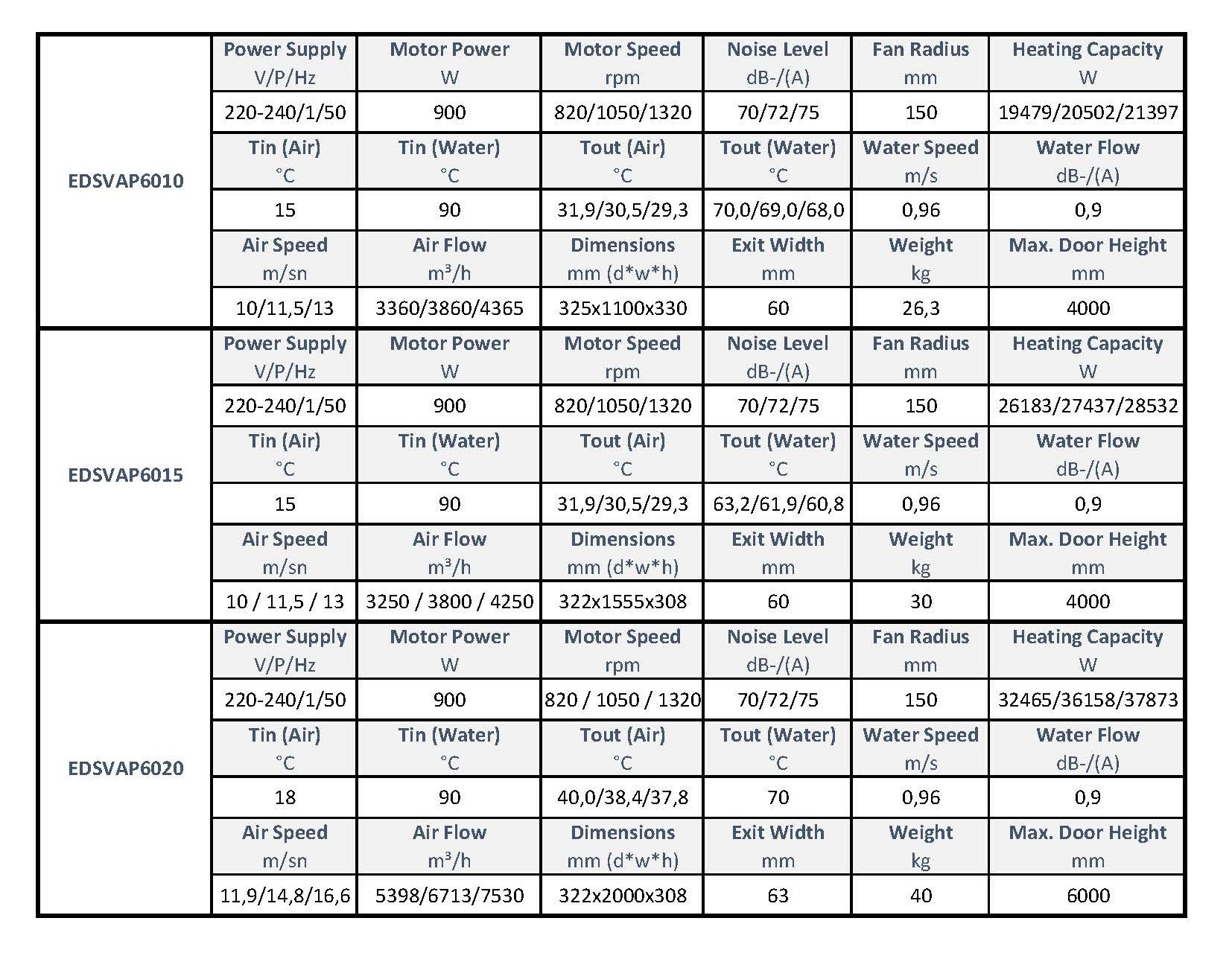

The technical details are summoned in the table below for various water coiled air curtains.
